Building Façade Physics
As sustainability targets become more ambitious and building performance standards continue to evolve, the role of the façade has never been more critical.
At Patrick Ryan Associates, we help developers, architects, and design teams deliver high-performing, future-ready buildings through specialist Building Façade Physics analysis. By integrating performance-led design principles from the earliest project stages, we support both new-build and refurbishment schemes in achieving greater efficiency, resilience, and occupant wellbeing.
What is Building Façade Physics?
Building Façade Physics is the science of how a building's external envelope interacts with its environment. It examines how the façade manages heat, air, moisture, light, and sound to create buildings that are comfortable, durable, and energy efficient.
Key areas of analysis include:
Thermal performance
- Heat loss through walls, glazing, and frames
- Insulation - U-values
- Thermal bridging - weak spots where heat escapes
Air tightness
- Preventing unwanted drafts
- Controlling ventilation through designed openings
- Air leakage through joints and interfaces
Moisture control
- Rain penetration - keeping water out
- Condensation risk inside walls or glazing
- Vapour movement through materials
Solar control & daylight
- How much sunlight enters the building
- Overheating risk – particularly with expansive glazing
- Use of shading devices, coatings, or façade geometry
Acoustics
- Blocking external noise
- Sound insulation performance of glazing and walls
Why does Building Façade Physics matter?
The façade serves as the primary interface between a building and its environment, making it one of the most influential factors in overall building performance.
A well-designed façade can:
- Reduce operational energy demand by lowering heating and cooling loads
- Enhance occupant comfort through improved temperature regulation, daylight control, and acoustic performance
- Improve durability by mitigating moisture ingress, corrosion, and premature material degradation
- Support compliance with current regulations, including UK Building Regulations Parts L and F
- Contribute to long-term sustainability objectives and whole-life building value
As the industry moves towards net-zero targets, façade performance is increasingly recognised as a fundamental driver of sustainable design.
Why choose Patrick Ryan Associates?
As a specialist façade consultancy, our focus is singular: helping clients achieve better-performing buildings through expert façade design and analysis.
Our Chartered Engineers bring extensive experience across a wide range of construction sectors, providing practical, buildable solutions that align performance aspirations with project realities. We also support projects incorporating Passivhaus principles and other advanced sustainability frameworks.
By embedding building physics considerations from concept stage onwards, we help ensure that design intent translates into real-world performance, reducing risk, improving efficiency, and delivering measurable value throughout a building's lifecycle.
Our expertise enables clients to minimise environmental impact during both construction and operation, reduce long-term running costs, and create spaces that are more functional, productive, and comfortable for occupants.
Our services include:
- U-values Analysis
- Condensation Risk Analysis
- Area Weighted U-Value Calculations
- Psi-Values
- Chi -Values

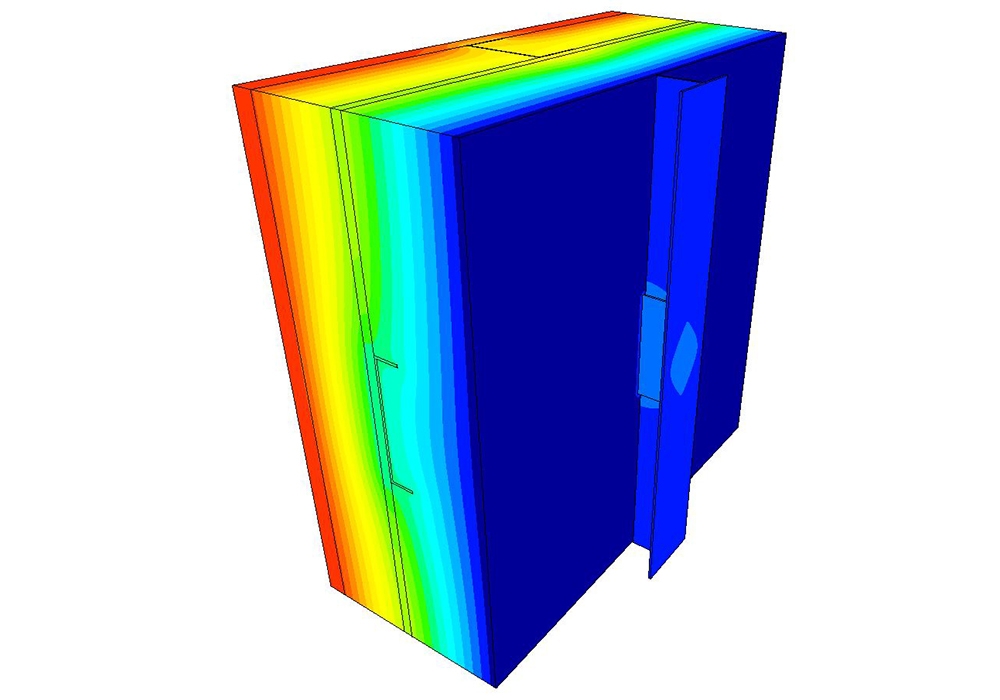

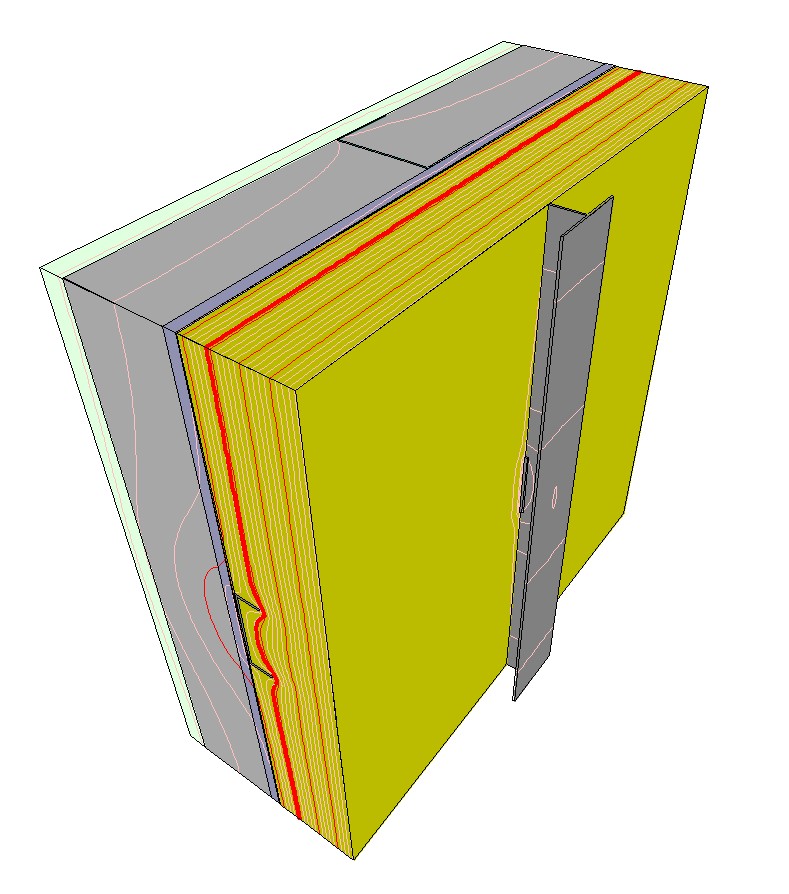

- Facade Thermal Modelling
- Hygrothermal Risk Assessment
In-House Software Includes:
- BuildDesk U 1D CRA Analysis
- Flixo – 2D analysis

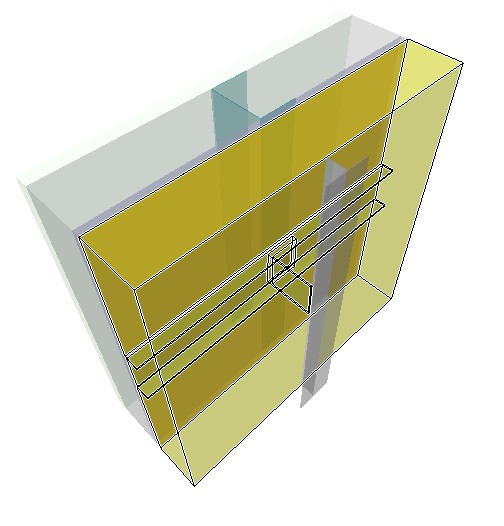

- Trisco – 3D Analysis
- WUFI Analysis
Whether you are developing a new building or enhancing an existing asset, robust façade physics analysis can unlock significant benefits in performance, sustainability, and occupant experience.
To learn how Patrick Ryan Associates can support your project, contact our team today.
